Standards & Technology

Smart Technologies

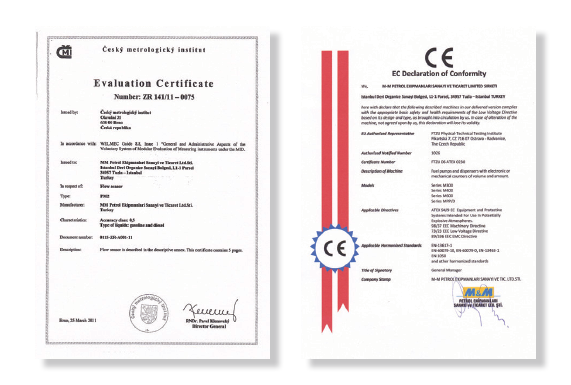

At Mekser, we only utilise the finest materials and highest standards in operations. It takes more than just innovative engineering to create a world class dispenser. It takes people, and our people are amongst the most skilled at their craft. Their individual talent, knowledge and care is why we consistently produce dispensers that exceed expectations. We believe in a culture of excellence, therefore Mekser constantly strives for improved quality throughout its products and services, also proven by latest MID, ISO, OIML and Gosstandard certifications.

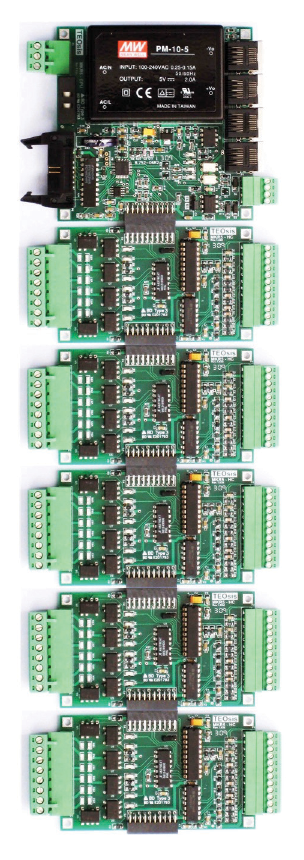

The newly improved MKR-5 controller provides the latest in dispenser electronics, enabling to communicate with all major automation systems including DOMS and thus providing a wide range of flexibility for different applications. Mekser dispensers can be optionally specified with multimedia systems, built-in credit card terminals, fiscal printers and customer identification systems.

All Mekser products carry 1 year warrnty for parts and labour as standard. Mekser supports its customers with economic genuine spare parts with economic spare part prices and protecting the investments in long-term.

Electronics	TMKR5 + HC
Type	SMB – Modular
Capacity	5 Product, 10 Nozzles, 2 Filling
Mains Supply (VAC)	90 – 240 VAC
Frequency (Hz)	50 ± 5
Operating Voltage (°C)	-20 +80
Humidity (%) 100	100
Electronic Unit Power Consumption (W)	40 – 150
Electronic Totals	Erasable 10 Digits
Electronic Totals	Non-erasable 10 Digits
Electromechanical Totalizator	7 Digits, Non-Resetable
Preset Programming (Standard)	Volume / Amount Selectable
Preset Programming (Option)	2 x Button (Big Value, Small Value)
Password Protection	User or Service Level
Electronic Calibration	Smart Pulse Generator
Solenoid Valve Drive	Two Stage & Proportional
Display (Standard)	8” LCD, 1” Digit, Orange Backlit
Display (Option)	10” LCD, 1¼” Digit, Blue Backlit
Communication Port (Current Loop – RS485)	Current Loop, RS485
Fiscal Cash Register Compatible	√

Flowmeter	PM2	PM4
Type	Positive Displacement	Positive Displacement
Piston	2	4
Cylinder Volume (Lt./Rev)	0.50	1
Body	Alu. Injection	Cast Iron GG
Maximum Flow (Qmax Lt./Min.)	70	120
Minimum Flow (Qmax Lt./Min.)	5	5
Minimum Measured Volume (MML)	2	10
Minimum Measured Volume (%)	± 0.25	± 0.25
Calibration Step (%)	0.1	0.1
Calibration Tolerance (%)	± 3	± 3
Maximum Pressure (Mpa)	0.3	0.3
Temperature Range of Liquid (°C)	-20 +50	-20 +50
Type of Liquid	Gasoline and Diesel	Gasoline and Diesel
Mechanical Calibration	√	√
Electronic Calibration	√	√
Flowmeter Approval Standards	OIML R 117-1	OIML R 117-

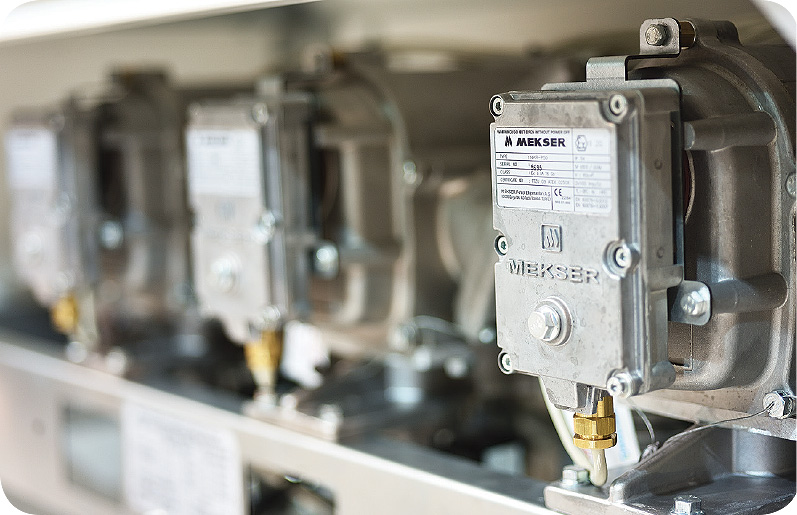

Mekser PM2 Meter

At the heart of every Mekser Dispenser lies 35 years of hydrolic production experience.

Fully machined in-house by latest CNC machines, assembled and tested by experienced craftsmen, it shouldn’t be a surprise that all our dispensers have the latest MID, OIML and ATEX approvals.

Mekser is the only producer of its region to provide both electronic and mechanic calibration for its hydrolic meters.

Suction Pomp	GP 45	GP 70	GP 120
Type	Gear	Gear	Vane
Body	G	G	G
Maximum Flow (Lt./Min.)	45	70	120
Minimum Flow (Lt./Min.)	4	7	10
Pump Rotation (rMin)	550	700	550
Noise Level (dB)	65	79	82
By-Pass Pressure (bar)	1.8	2.0	2.0
By-Pass Pressure Adjustment (bar)	1.2-2.5	1.2-2.5	1.5-2.5
Min. Dry Suction (mbar)	400	500	500
Min. Vet Suction (mbar)	700	700	700
In-Out Filter (Suction Types)	√	√	√
Cartridge Filter (Press.Types) (10h – 30h)	√	√	√
Pump Approval Standards	OIML R 117-1	OIML R 117-1	OIML R 117-1

Air Seperator	AS 50	AS 120
Type	External	External
Body	Alu.Injection	Cast Iron GG
Maximum Flow (Lt./Min.)	50	120
Minimum Flow (Lt./Min.)	0.3	0.3
Minimum Pressure (Mpa)	0.1	0.1
Liquid Type	Gasoline and Diesel	Gasoline and Diesel
Air Separator Approval Standard	OIML R 117-1	OIML R 117-1
